1.Main Chip Sets
MAIN CHIPSET:MSTAR
SDRAM:128M
NOR FLASH:32MB
2.LCD TV
LCD:Highlighted TFT
Resolution:1024*600
Speaker:2W/8Ω Φ28mm, 2pcs
FM:All band FM
3.ISDB-T TV system
Viedo Decode:MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD, MPEG4 AVC/H.264 BP@L3
DTV:DVB-T2 (H265, H264, DVB-T)
ATV:YES Analog TV
OSD Language:English,French,Portuguese,Spanish,Thailand,Arab,Simplified Chinese
Input Frequency :VHF: 174-230MHz; UHF : 470-862MHz
Standard Decode :MPEG4 HE-AAC@3 Max500KbPs

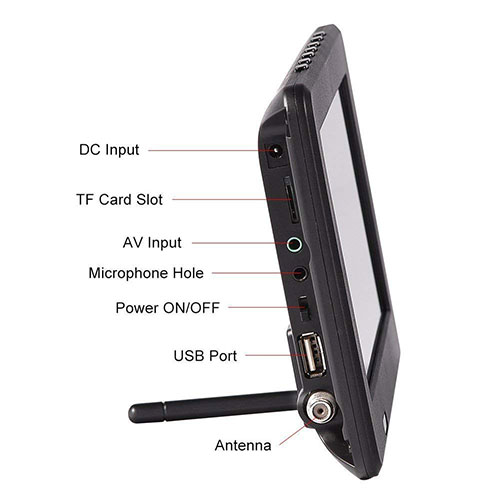

4.Input and Output
USB:1 USB2.0 Port, USB media player to playback the media /in USB flash disk or USB HDD or USB card reader with memory card.
TF :1 TF Port can read TF cardV
AV :AV in, support earphone
TV jack:Yes
DC 5V:DC in(3.5mm)
5.Video & Audio & Picture format
Audio format:WMA, MP3
Video format:DVIX, AVI, WMV, VOB, RMVB, MPEG-4, MKV
Picture format:JPEG/BMP/PNG
6.Battery and Power
Battery:1200mAh/7.4V rechargeable lithium battery (Max 2400mAh)
Power adapter:Input: AC100-240V~50/60Hz; Output: DC 9V/1.5A
