Main Feature
|
Powerful Multimedia Features
|
|
Fully ATSC compliant for North America with NTIA cert.
|
Photo: JPEG, BMP, PNG
|
|
ATSC Terrestrial broadcast channels 2-69
|
Audio: WMA, MP3, AAC (.wma, .mp3, .m4a)
|
|
HD-OUT for multimedia play, standard and high definition output
|
Video: MPEG1, MPEG2, MPEG4, H264
|
|
Auto and manually scan all available TV and radio channels
|
Motion JPEG (.avi,.mpg,.dat,.vob,.div,.mov,.mkv,.mjpeg,.ts,.trp)
|
|
Aspect ratio 16:9 and 4:3
|
JPEG/Audio combo playback
|
|
HD-OUT, Coaxial, YPbPr/YUV, RCA output
|
|
|
Multi-language OSD & Subtitles (English/French/Spanish)
|
|
|
Support EPG, display Present/Next TV program
|
Demodulation:
|
|
EIA 608 Closed Caption
|
ATSC NTIA Standard, 8VSB
|
|
Parental control (V-Chip)
|
QPSK, 64QAM, 256QAM
|
|
PVR ready function via USB 2.0,Timeshift function
|
FEC: 1/2, 2/3, 3/4, 4/5,5/6,
|
|
NTSC Loop Through supported
|
Guard Interval: 1/4,1/8,1/16,1/32,1/128
|
|

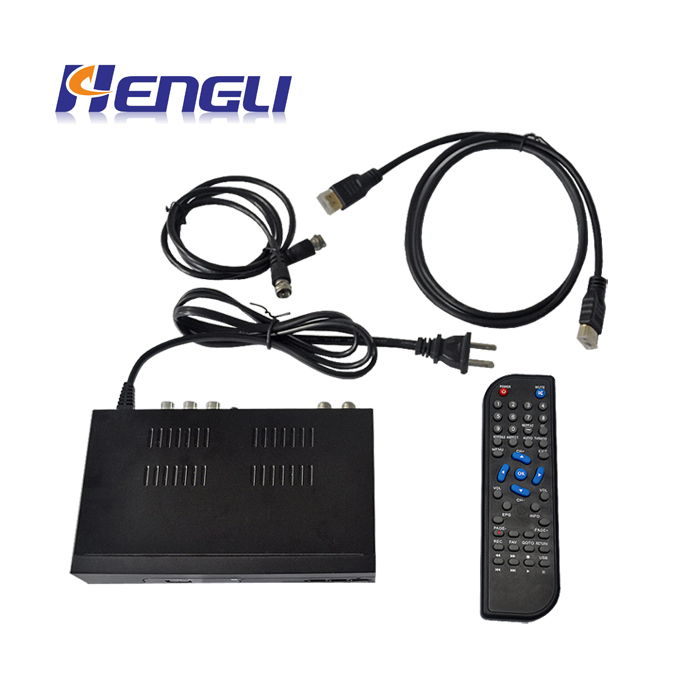

Universal remote control
|
FFT Mode: 2K, 8K, 32K
|
|
Tuner
|
Demultiplexer
|
|
ATSC Terrestrial tuner
|
Standard ISO/IEC 13818-1; ARIB STB-B10
|
|
RF input frequency: 54-803MHz
|
Input max. bit stream rate: 36Mbps (serial)
|
|
Bandwith: 6MHz
|
/ 9Mbps (parallel)
|
|
Input level: -83 - -5dBm
|
|
|
RF 3/4CH and loop through function
|
|
|
Decoding
|
Hardware Interface
|
|
MPEG transport stream and A/V decoding
|

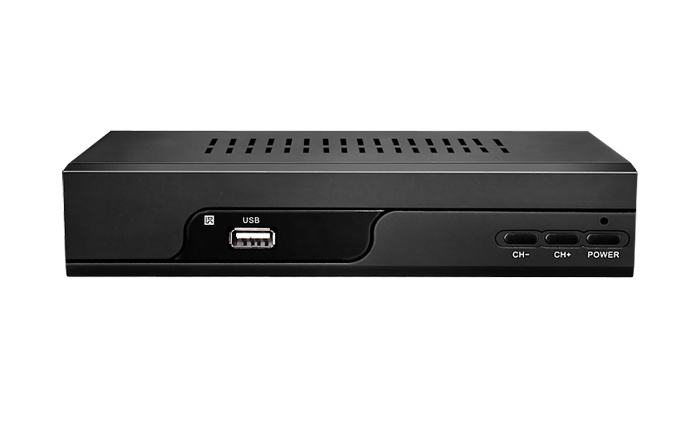

Front Panel
|
|
Video decoder: ATSC A/72 MPEG2/4 H.264 SD&HD
|
Indicators
|
|
Aspect ratio: 4:3, 16:9
|
IR Receiver
|
|
MP@HL HDTV, MP@ML SDTV
|
USB: Firmware upgrade, PVR & Multimedia playback
|
|
ATSC formats
|
LED display (Option)
|
|
Video resolution: 720X480 NTSC/HD-OUT 1080P
|
|
|
Audio standard: ISO/IEC 14.496-3
|

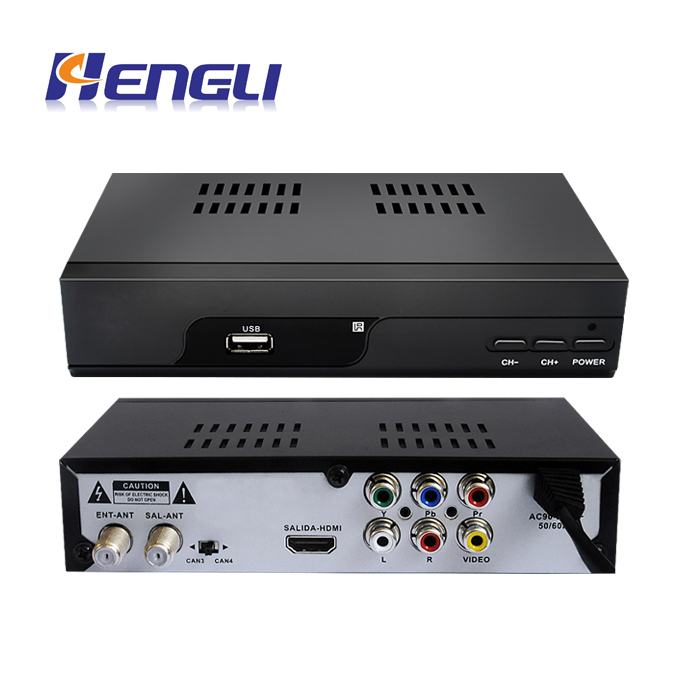

Rear Panel
|
|
Audio mode: mono, dual-channel, stereo
|
HD-OUT 1.3: 576i, 576p, 720p and 1080i,1080P
|
|
|
Loop through output: IEC-type, connector, single tuner
|
|
|
Coaxial digital audio output: RCAx1
|
|
|
YPbPr: RCAx3
|
|
|
L/R output: RCA x2
|
|
|
CVBS
|
